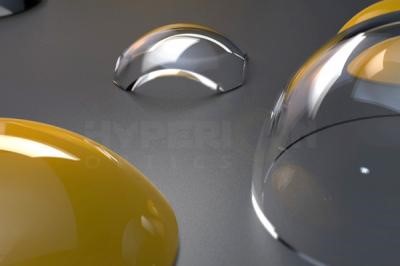

Sapphire Dome, Ge Dome, ZnS Dome, ZnSe Dome, Glass dome, Hemisphere Dome
Glass domes are widely used for commercial applications which require protective boundary between different environments; domes perform as windows, providing protection to electronic sensors or detectors without sacrificing field of view.
Composed of two parallel optical surfaces, domes have no optical effect on design optical path. In lead element in an optical system, a dome is exposed to the environment, N-BK7 is good choice for visible to near infrared lead applications, which will withstand wind and rain erosion.
Typically in single-use defence applications and ocean exploration. Shapes can vary from hemispheric to custom size with coatings.
Our OEM have strict control of wall thickness variation spec by utilizing most reliable deterministic CNC machine tools, they grind and polish optical glass, fused silica and zinc sulphide for applications range from visible to infrared.
Our OEM have strict control of wall thickness variation spec by utilizing most reliable deterministic CNC machine tools, they grind and polish optical glass, fused silica and zinc sulphide for applications range from visible to infrared.
General Specifications
| Diameter tolerance (mm) | +/-0.1 |
|---|---|
| Wall Thickness tolerance(mm) | +/-0.05 |
| Wall Thickness variation(mm) | +/-0.01 |
| Surface finish | 60:40 |
| Chamfers | 0.2 x 45° typical |
| Centricity (mm) | < 0.1 |
- • Custom domes available from 5mm to over 200mm diameter
- • Parts may be AR coated for improved transmission. Information on alternative coatings available on request
- • Although typically manufactured from BK7, UV Fused Silica or Sapphire, other materials are available on request
- • Domes may be manufactured with or without flanges for ease of installation
